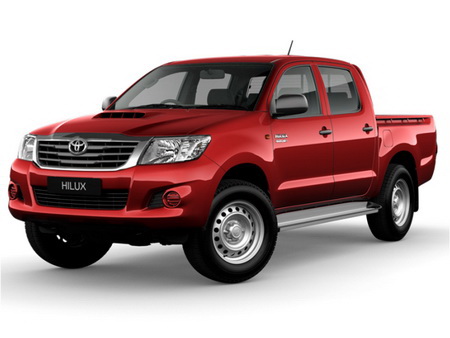

TOYOTA Hilux AN10/AN20/AN30 2005-2015 fluids type and filling capacities
Recommended engine oil, transmission fluids, coolant type, filling capacities and service intervals for TOYOTA Hilux AN10/AN20/AN30 2005-2015.
Share
Post| Aggregate | Recommeded fluid | Capacity (Liters) | Intervals |
| 2,0L and 2,7L gasoline engines (1TR-FE and 2TR-FE) | 10W30 or 5W30 API SL or above; with API certification mark
|
5,6 | 5000 km or 3 months |
| 2,5L and 3,0L diesel engines (1KD-FTV and 2KD-FTV) | For Australia and Asia: 5W30 API CF-4 or ACEA B1
For Europe: 0W30 or 5W30 ACEA C2 |
6,9 | 5000 km or 3 months |
| 4,0L gasoline engine (1GR-FE) | 10W30 or 5W30 API SL or above; with API certification mark
|
5,5 | 5000 km or 3 months |
| Cooling system (1TR-FE and 2TR-FE) | Toyota Super Long Life Coolant
|
7,0 - 8,0 | 80000 km |
| Cooling system (1KD-FTV and 2KD-FTV) | Toyota Super Long Life Coolant
|
10,0 - 11,0 | 80000 km |
| Cooling system (1GR-FE) | Toyota Super Long Life Coolant
|
10,0 | 80000 km |
| 4-speed automatic transmission | Toyota ATF Type-IV
|
10,1 | 80000 km or 48 months |
| 5-speed automatic transmission (A750F) | Toyota ATF-WS
|
10,6 | 80000 km or 48 months |
| 5-speed manual transmission | 75W90 API GL-4
|
2,2 - 2,6 | 40000 km or 24 months |
| Transfer case | 75W90 API GL-5
|
1,0 | 40000 km or 24 months |
| Front differential (Without A.D.D) | 80W or 80W90 API GL-5
|
1,5 | 20000 km or 12 months |
| Front differential (With A.D.D) | 75W90 API GL-5
|
1,7 | 20000 km or 12 months |
| Rear differential (Standard) | 80W or 80W90 API GL-5
|
3,4 (2,5 - South Africa plant) | 20000 km or 12 months |
| Rear differential (With rear differential lock system) | 80W or 80W90 API GL-5
|
2,9 | 20000 km or 12 months |
| Rear differential (With LSD) | 80W or 80W90 API GL-5 LSD
|
3,4 | 20000 km or 12 months |
| Propeller shafts | Lithium base chassis grease, NLGI No.2
|
5000 km or 3 months | |
| Power steering hydraulic system | DEXRON II or III
|
||
| Brakes and clutch | DOT3 or DOT4
|
40000 km or 24 months | |
Information in this table may be incorrect for your region or driving conditions. Refer to the owners/service manual for details.
