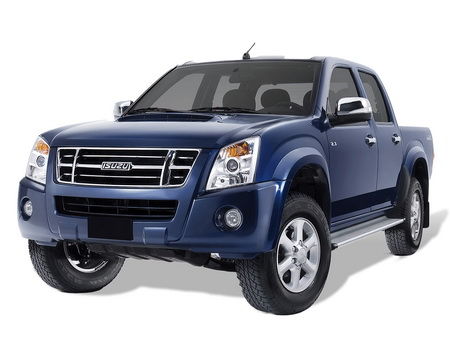

ISUZU D-Max / Rodeo RA/RC 2002-2012 fluids type and filling capacities
Recommended engine oil, transmission fluids, coolant type, filling capacities and service intervals for ISUZU D-Max / Rodeo RA/RC 2002-2012.
| Agregate | Recomeded fluid | Capacity (L) | Intervals |
| 2,4L gasoline engine (C24SE) | 5W30 or 10W30 API SJ or above; ACEA A3/B3 | 4,3 | 5000 km (3000 miles) or 3 month |
| 2,5L diesel engine (4JA1/4JK1) | 10W30 or 15W30 or 15W40 API CF-4 or CD; ACEA E2/E3, B2/B3 | 6,2-7,0 | 5000 km (3000 miles) or 3 month |
| 3,0L diesel engine (4JH1/4JJ1) | 10W30 or 15W30 or 15W40 API CF-4 or CD; ACEA E2/E3, B2/B3 | 6,2-7,0 | 5000 km (3000 miles) or 3 month |
| 3,6L gasoline engine (HFV6) | 5W30 or 10W30 API SL or above; ILSAC GF-3 or above | 6,5 | 5000 km (3000 miles) or 3 month |
| Cooling system (2,4L) | Ethylene glycol antifreeze or GM spec. 6033-M | 8,0 | 2 years |
| Cooling system (2,5L) | Ethylene glycol antifreeze or GM spec. 6033-M | 8,7 | 2 years |
| Cooling system (3,0L) | Ethylene glycol antifreeze or GM spec. 6033-M | ~ 10,0 | 2 years |
| Cooling system (3,6L) | Ethylene glycol antifreeze or GM spec. 6033-M | 10,3 | 2 years |
| 4-speed automatic transmission (4L60-E) | DEXRON III | 4,7 (service fill) 7,9 (overhaul fill) |
20000 km (12000 miles) |
| 4-speed automatic transmission (AW30-40LE) | JWS3309 | 8,7 | 20000 km (12000 miles) |
| 5-speed manual transmission (AR5) | 75W90 API GL-4 | 2,3 | 20000 km (12000 miles) |
| 5-speed manual transmission (MUA5G/S) | Use same oil as used in engine, or SAE 5W30 | 3,0 | 20000 km (12000 miles) |
| Transfer case | Use same oil as used in engine, or SAE 5W30 | 1,3 | 20000 km (12000 miles) |
| Front differential | 80W140 or 80W90 API GL-5 | 1,4 | 20000 km (12000 miles) |
| Rear differential (D=194 mm) | 80W140 or 80W90 API GL-5 | 1,6 | 20000 km (12000 miles) |
| Rear differential (D=220 mm, without LSD) | 80W140 or 80W90 API GL-5 | 2,4 | 20000 km (12000 miles) |
| Rear differential (D=220 mm, with LSD) | 80W140 or 80W90 LSD API GL-5 | 2,4 | 20000 km (12000 miles) |
| Power steering | DEXRON III | 1,0 | |
| Brake and Clutch | DOT4 | 1,0 | 2 years |
| Propeller shaft sliding yoke and Universal joint | NLGI #2 or #3 multi purpose type grease containing molybdenum disulfide | 5000 km (3000 miles) | |
Information of this table may be incorect for your region or driving conditions. Refer to the owners/service manual for details.
