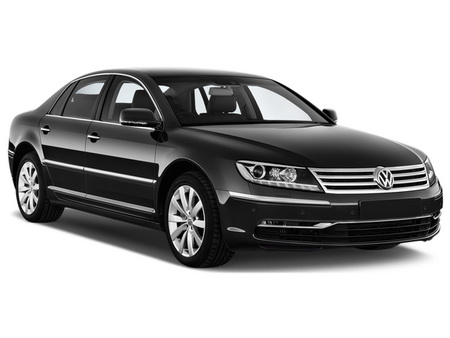

VOLKSWAGEN Phaeton 2003-2016 fluids type and filling capacities
Recommended engine oil, transmission fluids, coolant type, filling capacities and service intervals for VOLKSWAGEN Phaeton 2003-2016.
Share
Post| Aggregate | Recommeded fluid | Capacity (Liters) | Intervals |
| 3,0L diesel engine (V6 TDI) | VW507.00
|
8,3 | 7500 km (5000 miles) or 1 year |
| 3,2L petrol engine (VR6) | VW502.00 or VW504.00
|
6,0 | 7500 km (5000 miles) or 1 year |
| 3,6L and 3,0L petrol engines (VR6) | VW502.00 or VW504.00
|
6,2 | 7500 km (5000 miles) or 1 year |
| 4,2L petrol engine (V8) | VW502.00 or VW504.00
|
7,5 | 7500 km (5000 miles) or 1 year |
| 5,0L diesel engine (V10 TDI) | VW506.01
|
10,0 | 7500 km (5000 miles) or 1 year |
| 6,0L petrol engine (W12) | VW502.00 or VW504.00
|
12,5 | 7500 km (5000 miles) or 1 year |
| Cooling system | VAG G13 Antifreeze
p/n: G013A8JM1 |
||
| 5-speed automatic transmission (01V, ZF5HP19) | p/n: G052162A2
|
3,0 (service fill) 9,0 (overhaul fill) |
60000 km |
| 5-speed automatic transmission (01L, ZF5HP24) | p/n: G052162A2
|
4,0 (service fill) 9,8 (overhaul fill) |
60000 km |
| 6-speed automatic transmission (09L, ZF6HP19) | p/n: G060162A2
|
3,0 (service fill) 9,8 (overhaul fill) |
60000 km |
| 6-speed automatic transmission (09F) | p/n: G055005A2
|
3,0 (service fill) 11,7 (overhaul fill) |
60000 km |
| 6-speed manual transmission (01E) | p/n: G052911A2
|
2,2 | 60000 km |
| Transfer case (01V and 09L and 01L gearboxes) | p/n: G052145S2
|
0,55 - 0,8 | |
| Transfer case (with 09F gearbox) | p/n: G052145S2
|
1,2 | |
| Front differential (with 01V and 09F gearbox) | p/n: G052145S2
|
0,8 - 0,9 | |
| Front differential (with 09L and 01L gearbox) | p/n: G052145S2
|
1,1 - 1,3 | |
| Rear differential (0AR) | p/n: G052145S2
|
0,9 | |
| Rear differential (01R and 08Y) | p/n: G052145S2
|
1,1 - 1,5 | |
| Brake and Clutch | DOT4
|
2 years | |
| Power steering | p/n: G004000M2
|
||
Information in this table may be incorrect for your region or driving conditions. Refer to the owners/service manual for details.
